Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

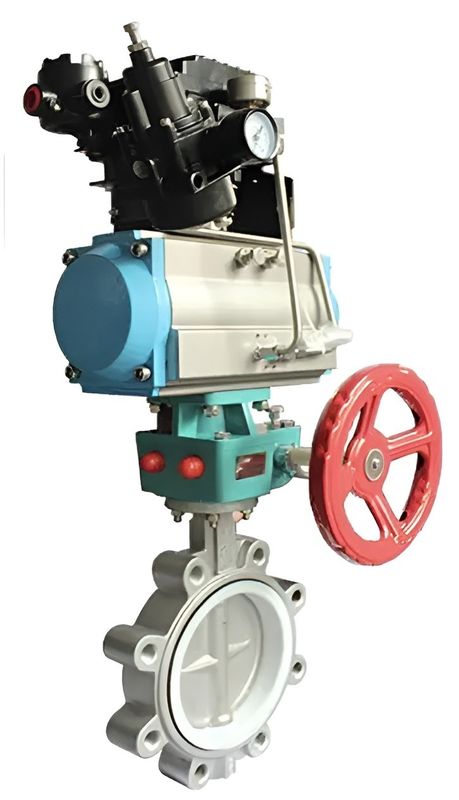

pneumatic lugge butterfly valve

Highlight: pneumatic lugge butterfly valve

Product introduction:

This product features a compact structure, small size, reliable operation, good sealing performance, easy maintenance,

and convenient installation. It is widely used in fluid control systems of petroleum, chemical, light industry, pharmaceutical,

papermaking, construction, etc., for remote centralized control or local control. According to user needs, this pneumatic

butterfly valve can be equipped with travel limit switches, indicators, air source triplets, etc. It uses compressed air as

power (air source pressure 0.4-0.7MPa), and drives the butterfly disc to rotate 90° in the valve body through the valve

stem to achieve full-open to full-closed actions.

Product technical parameters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6～4.0
Test Pressure (MPa)	Strength (water)	0.9～6.0
Test Pressure (MPa)	Enclose (Water)	0.66～4.4
Main Components	Body	Stainless steel/Carbon steel/alloy steel
	valve plate	Stainless steel/Carbon steel/alloy steel
	valve stem	2Cr13 stainless steel
	Packing	PTFE, flexible graphite
	Shaft	Stainless steel, PTFE, cemented carbide
Working temperature		-40～570℃
Medium suitable		Water, oil, steam, acid and alkali and other corrosive media

Product features:

This valve adopts a double-eccentric structure, featuring a sealing function that tightens as it closes, ensuring reliable sealing performance.
The sealing pair materials are selected as stainless steel and nitrile oil-resistant rubber, offering a long service life.
The rubber sealing ring can be positioned on either the valve body or the butterfly disc, adapting to media with different characteristics for user selection.
The butterfly disc uses a frame structure, providing high strength, a large flow area, and low flow resistance.
The overall baking finish effectively prevents corrosion, and by only replacing the sealing seat material, the valve can be applied to different media.
This valve has a bidirectional sealing function, allowing installation in any direction without being restricted by the media flow direction or spatial position.
The valve features a unique structure, flexible operation, labor-saving, and convenient handling.
