Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

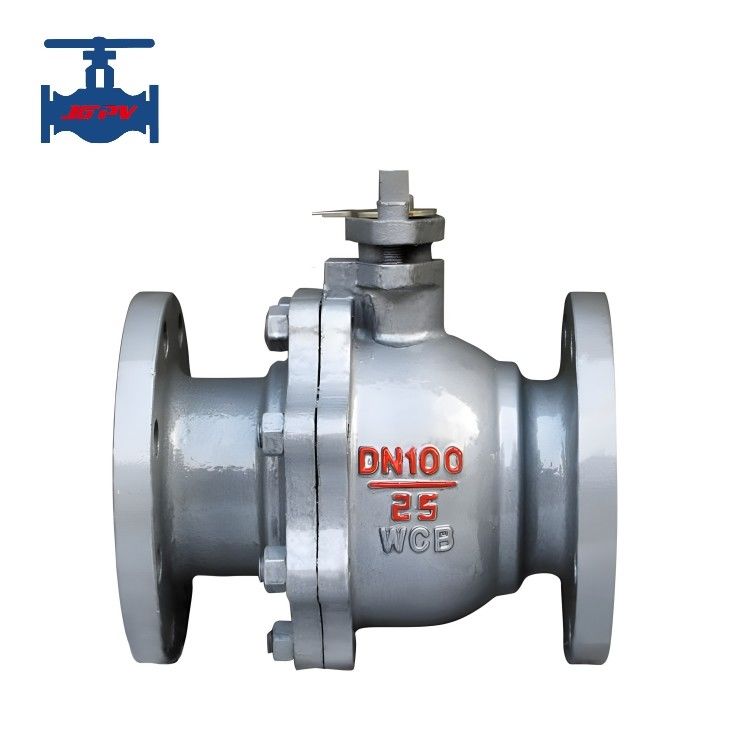

Two-piece flanged ball valve

Highlight: Two-piece flanged ball valve

Product introduction:

A two-piece ball valve refers to a ball valve whose valve body is composed of two hemispheres, generally installed in the

middle position of a pipeline. Due to its flexible structure and good sealing performance, the two-piece ball valve is widely

used in industrial production. The choice between a floating type and a fixed type depends on the flexibility of the specific

working environment and requirements. Whether floating or fixed, they are indispensable important tools for fluid control.

Product technical parameters:

Nominal Diameter DN (mm)		15~200
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Body	WCB/CF8/CF8M
	Valve ball	Stainless steel/Carbon steel
	Seat	PTFE
	Packing	Soft graphite
	Shaft	2Cr13
	Handle	Ductile iron
Working temperature		≤150℃
Medium suitable		Water, oil, steam

Product features:

1. Simple structure for easy maintenance.

2. Small space occupation, suitable for installations with limited space.

3. Lightweight switching operation with small opening/closing torque.

4. Flexible connection methods, allowing selection of threaded, welded, or flanged connections as needed.

5. Suitable for low-pressure and small-diameter applications.
